Cell-free Protein Expression

NEBExpress Cell-free E. coli Protein Synthesis System

The NEBExpress Cell-free E. coli Protein Synthesis System is a coupled transcription/translation system designed to synthesize proteins encoded by a DNA template under the control of a T7 RNA Polymerase promoter. The system offers high expression levels, the ability to produce high molecular weight proteins, scalability, and is cost-effective for high throughput expression applications. The speed and robustness of the system facilitates protein synthesis in applications such as protein engineering, mutagenesis studies and enzyme screening. In addition, it can be used to generate proteins for biophysical and structure-function analyses.

Advantages:
  • Quickly generate analytical amounts of protein for further characterization
  • Synthesizes various target proteins ranging in size from 17 to 230 kDa
  • Templates can be either plasmid DNA, linear DNA, or mRNA
  • Minimal protease activity ensures stability of desired target protein
  • Flexible reaction conditions
  • Reactions can be directly loaded onto an SDS-PAGE gel without the need for acetone or TCA precipitation

The NEBExpress Cell-free E. coli Protein Synthesis System contains all the components required for protein synthesis, except for the target template DNA. It is a combination of a highly active cell extract from a genetically engineered strain, a reaction buffer, and an optimized T7 RNA Polymerase, which together yield robust expression of a wide variety of protein targets ranging from 17 to 230 KDa.

Protein synthesis is achieved with a short incubation and synthesized protein is compatible with downstream purification or analysis by SDS-PAGE, Western Blot or direct functional assay. The novel formulation of this system allows samples to be loaded directly onto SDS-PAGE, without the need for acetone or TCA precipitation. Additionally, synthesized protein can be isolated from the reaction mixture using affinity purification techniques, such as immobilized metal affinity chromatography (IMAC), for further structural and/or functional characterization.

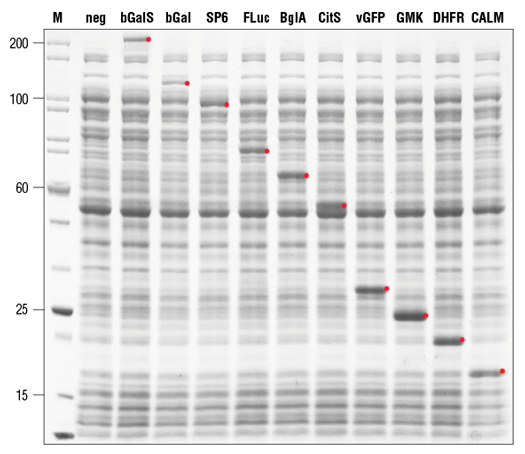

Protein synthesis using the NEBExpress Cell-free E. coli Protein Synthesis System
50 µl reactions containing 250 ng template DNA were incubated at 37°C for 3 hours. 2 µl of each reaction were analyzed by SDS-PAGE using a 10–20% Tris-glycine gel. The red dot indicates the protein of interest. M = Unstained Protein Standard, Broad range (NEB #P7717), “Neg” = negative control, no DNA.

Available NEBExpress Cell-free products:

PRODUCT Prod. # SIZE PRICE
NEBExpress Cell-free E. coli Protein Synthesis System E5360S 10 rxns In den Shop wechseln Produktinformationen
E5360L 100 rxns In den Shop wechseln Produktinformationen
Compatible with:
NEBExpress GamS Nuclease Inhibitor P0774S 75 µg In den Shop wechseln Produktinformationen
PURExpress Disulfide Bond Enhancer E6820S 50 rxns Aller dans la boutique en ligne Produktinformationen

PURExpress In Vitro Protein Synthesis Kit: A rapid method for gene expression analysis.

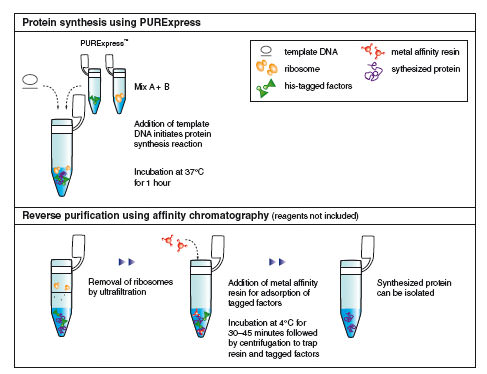

A rapid method for gene expression analysis, PURExpress is a novel cell-free transcription / translation system reconstituted from the purified components necessary for E. coli translation. The nuclease-free and protease-free nature of the PURExpress platform preserves the integrity of DNA and RNA templates/complexes and results in proteins that are free of modification and degradation. Transcription and translation are carried out in a one-step reaction, and require the mixing of only two tubes. With results available in a few hours, PURExpress saves valuable laboratory time and is ideal for high throughput technologies.

PURExpress is based on the PURE system technology originally developed by Dr. Takuya Ueda at the University of Tokyo and commercialized as the PURESYSTEM® by Biocomber
(Tokyo, Japan).

Advantages:
  • Cleaner system - lack of endogenous proteases or nucleases eliminates sample degradation
  • Flexible - formulation amenable to modification
  • Simple analysis - synthesized protein can often be visualized on a Coomassie stained gel
  • Easy-to-use - requires the mixing of two tubes followed by the addition of template DNA, either circular or linear template
  • Fast - reaction is complete in approximately two hours
  • Efficient - purified components enable more control of translational and folding machinery
  • Stable - resistant to multiple freeze/ thaw cycles

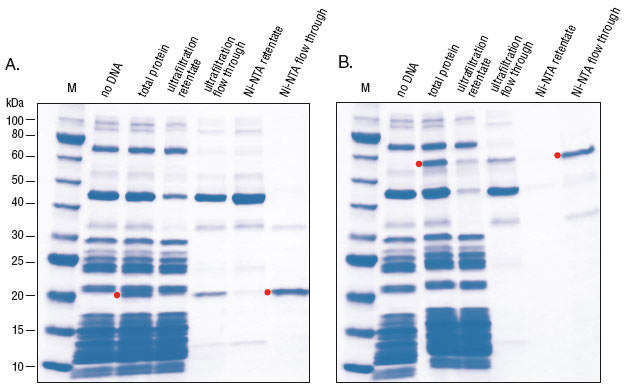

Expression and reverse purification of DHFR (A) and T4 DNA Ligase (B) using PURExpress.
125 μl reactions were carried out according to recommendations in the accompanying manual. Samples were analyzed on a 10–20% Tris-glycine gel and stained with Coomassie Blue. Note that in both cases, the desired protein can be visualized in the total protein fraction. The red dot indicates the protein of interest. Marker M: Protein Ladder #P7703

Available products

PRODUCT Prod. # SIZE PRICE
PURExpress® In vitro Protein Synthesis Kit E6800S 10 rxns In den Shop wechseln Produktinformationen
E6800L 100 rxns In den Shop wechseln Produktinformationen
PURExpress® Delta Ribosome Kit E3313S 10 rxns In den Shop wechseln Produktinformationen
PURExpress® Delta (aa, tRNA) Kit E6840S 10 rxns In den Shop wechseln Produktinformationen
PURExpress® Delta RF123 Kit E6850S 10 rxns In den Shop wechseln Produktinformationen
Companion Products:
PURExpress® Disulfide Bond Enhancer E6820S 50 rxns In den Shop wechseln Produktinformationen
E. coli Ribosome P0763S 1 mg In den Shop wechseln Produktinformationen
Murine RNase Inhibitor M0314S 3.000 units In den Shop wechseln Produktinformationen
M0314L 15.000 units In den Shop wechseln Produktinformationen

As of: 01.01.2020

Licenses/Patents/Disclaimers: PURExpress® is based on the PURE System Technology originally developed by Dr. Takuya Ueda at the University of Tokyo and commercialized as the PURESYSTEM® by BioComber (Tokyo, Japan). Licensed from BioComber (Tokyo, Japan) under Patent Nos. 7,118,883; WO2005-105994 and JP2006-340694. For research use only. Commercial use of PURExpress® Δ Ribosome Kit requires a license from New England Biolabs, Inc.

Further information can be found in our Technical Resources section or at neb.com
